“Words… ” box

Monday, March 16th, 2015

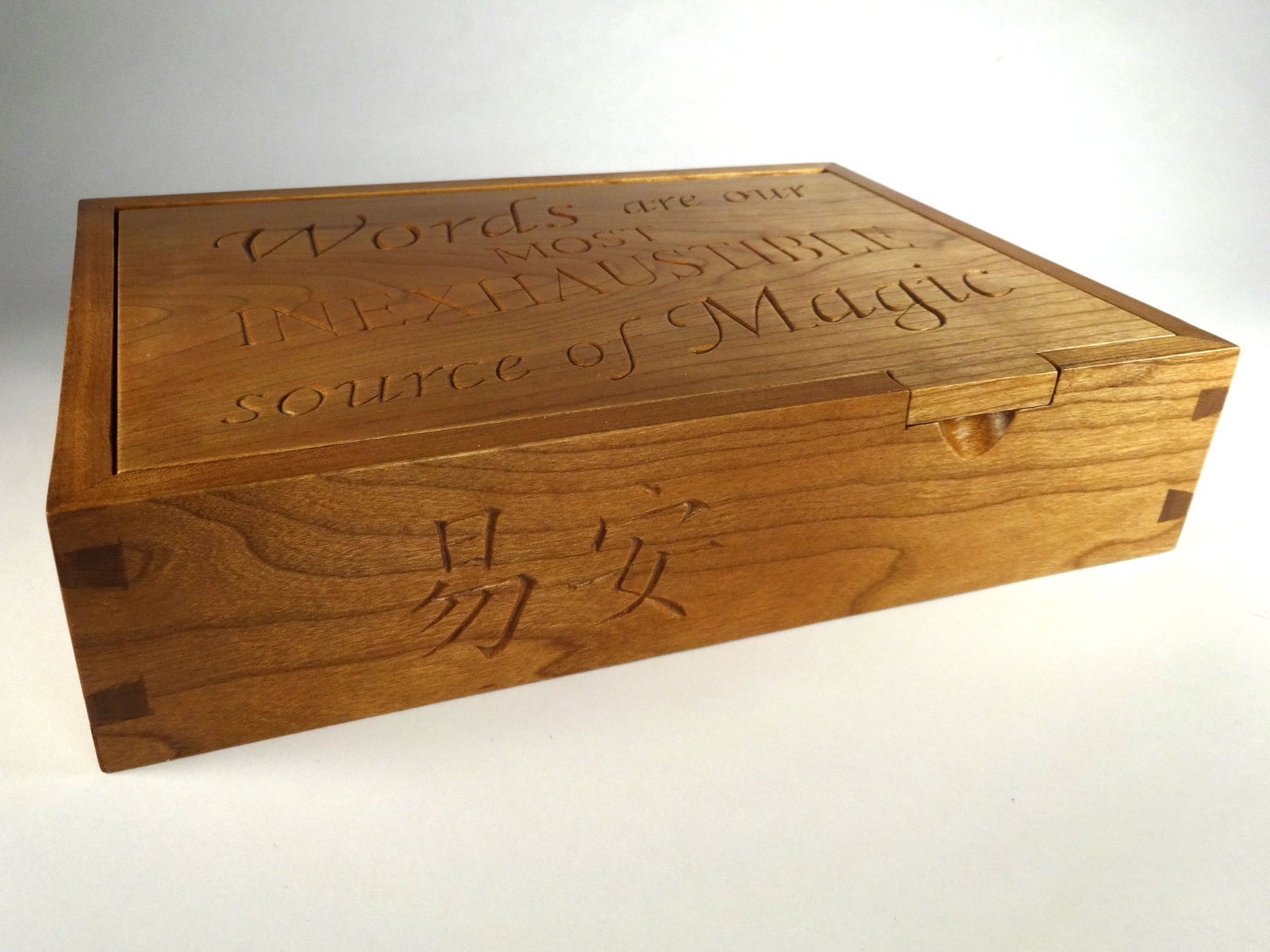

closeup of lid inscriptionWords are our most inexhaustible source of magic.

My wife, a linguist, lifelong student of many languages and an English pronunciation teacher was immediately enchanted when she first heard these words.

The box is for her, with two inscriptions making it a very special box. The second inscription is the pair of Chinese characters on the front of the box, her Chinese name. closeup of Chinese nameNo, she’s not Chinese. She’s as Western as I am Hoosier. Chinese people sometimes offer non-Chinese friends an honorary Chinese name. This name is a gift from one of her language partners who lives near Beijing. He bestowed this name because it is the pseudonym of a premier Chinese poet he admires, Yi’an Jushi. A reasonable translation is “Amiable Calm.”

The box is intended as a desk box, something of convenient size for everyday use on her desk. It measures 9 inches long by 5 and 5/8 inches wide by 2 inches high. The box is made of mostly cherry. All of the cherry parts are 5/16 inch thick. The floor is 1/8 inch thin walnut. The finish is wax over shellac, several coats of each, with a lot of rubbing and buffing.

box with thilt lid openThis box uses my current favorite box construction. I like dovetailed corners, but I don’t like butt joints showing at the edges. I also like the floors set in grooves, but I don’t want any through grooves showing. Plugging exposed grooves is ugly to my eye. So, I use joinery that features dovetails in the middles of the joins and miters at the tops and bottoms. The technique eliminates butt joins, leaving beautiful miters and by strategically placing the groove, hides the grooves. Miter tip later…

Lastly, the tilt lid, from Peter Lloyd’s “Making Heirloom Boxes,” makes for easy use. The lid opens to just a bit beyond 90° which let’s it stand open nicely. The hinge pins are walnut. The lift tab is shaped to echo the bottom loop of the “g” just above it. The notch is a simple scoop.

Lettering layout

Which brings me back to the lid inscription, the part that took the longest. The cherry parts were prepped almost a year ago, as was the walnut. It wasn’t until last fall that I got serious about the inscription.

I started with a lettering layout that used all Roman capitals, the norm for so many inscriptions. It was too “flat” for my tastes. I wanted something more flowing and more cursive. My lettering design work went through about a dozen iterations, all hand drawn.

Hand drawn lettering is making a come back on the web, as are hand painted signs in the brick and mortar world. After years of computer drawn fonts and plastic lettering, many designers are looking for something different and more human to polish their designs. So, there’s a lot of hand drawn lettering showing up. Some of it is really good. A lot is terrible! In an effort to draw attention to “hand drawn,” many of these designers go to extremes to make “hand drawn” obvious by making the work wildly imperfect. Too often, the result is hand drawn letters that look childish and amateurish.

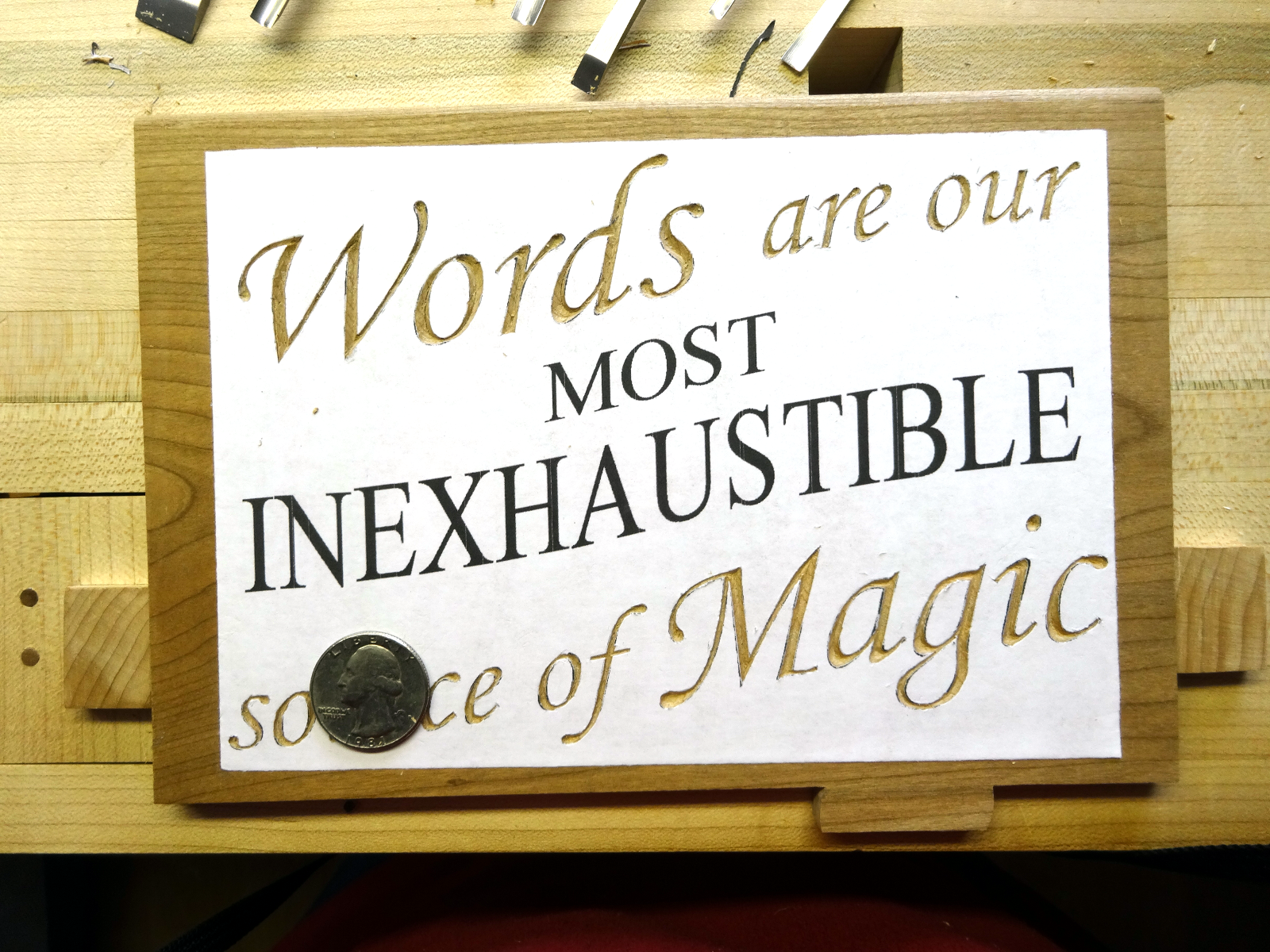

photo of carving in progressMany decades ago, I watched my father do nearly perfect hand painted lettering. That’s the quality level I wanted, not childish dreck. A dozen or so iterations later, I landed on the design I like, … and she liked it too.

Now, to carve it.  This lettering differs from most of my previous experience in scale. The lower case cursive letters are only about 1/2 inch high. The Roman caps in “Inexhaustible” are about 3/4 inch high. All are very much smaller than I’ve carved before and I’ve learned that difficulty increases as the size shrinks. Those 41 characters were preceded by well over 200 practice characters. I carved some of them over and over and was repeatedly disappointed. It turns out that “the secret” to success is in how the pattern is transferred to the wood. Most of my practice cuts were done by using carbon paper to transfer the design to the wood and then cutting. It was too easy to be inaccurate. Being off by the width of a half-millimeter pencil line was enough to throw off the look of a letter. Over and over, the results were unsatisfactory.

The answer was to scan the design, make it a computer hosted image, print it out and glue it to the wood with rubber cement. Cutting through the paper eliminated the inaccuracy that was based in tracing and immediately led to good results.

Smaller gouges were in order for this smaller work. For the most part, I used full length gouges, but in narrower widths, #1 1/4 in fishtail, #1 3/8 in., #3 1/8 in., #3 3/16 in. fishtail,  #6 1/4 in. and a set of 6 #8 micro gouges that ranged in width from 1/16 ” to 1/4″.  The #3 fishtail did most of the work.

For those interested in lettercarving, Mary May has several lettercarving lessons at her online school. Albeit, they’re larger, easier to manage letters.

For readers interested in learning really high quality hand learning, take a look at Sean McCabe’s online lettering course.

If your interest is hand painted signs, I’ve found these two links interesting.

Perfecting the mitered corners

Now for the mitered corners. I mark the miters with a standard layout square and cut them by hand with the same fine back-saw that I use for dovetails. I don’t use a miter box for these; just cut freehand, only to the depth needed. I cut just outside the line, leaving about half a kerf-width room to trim. As the dovetail joints come together these miters fail to join because they are “fat.”

Making them fit perfectly is simple. I learned this technique from Doug Stowe’s book, “Simply Beautiful Boxes.” It works like this: When the dovetails are about one saw kerf width from being completely joined, press the miters together (holding square) and then use a very fine Japenese pull saw to cut a simple kerf through the middle of the joint. That effectively trims both pieces. Repeat to narrow the gap. Voila, perfect joint!

Inscription source

Lastly, the quotation for the lid is from Prof. Albus Dumbledore in “Harry Potter and the Deathly Hollows.”

references:
mitered dovetail joints: Fine Woodworking – Matt Kenney – “Two Ways to Build a Box
fitting the miters: from Doug Stowe’s Simply Beautiful Boxes
tilt lid design: from Peter Lloyd’s Making Heirloom Boxes

Words

Thursday, February 26th, 2015

Work In Progress – (still) in progress. Yes, since October…



Small Storage Box – Radiata Pine – and a Carving

Monday, March 17th, 2014

Card scraper box - finger notch was cut with a #6 gougeShe said, “It turned out pretty well for being chintzy wood.”

Pines are native to most of the northern hemisphere. So, why is it when I go to nearest home center, the pine they have is the Radiata species grown in New Zealand? I wonder what the market dynamics are that brings the stuff nearly 9000 miles to get to the big orange box store near us. I do have to admit that it is generally very free of knots and usually straight, flat, and straight grained … much better than some of the other stuff in the store.

Card scraper box - room for moreThis little flip-lid box is intended as storage for a growing collection of card scrapers. Being a shop accessory, I decided to use some of the radiata pine I have left from other projects and save the hardwood for other times.

The box needs dividers and I’ve never made them before. I worked out the simple scheme of three dividers and two end pieces to hold them. Another quick wood decision. … photo of dividers, end piece with dadoes and toolsThere’s a lot of cedar left from boatbuilding days and it can be cut down to 1/8 inch thickness very quickly. It’s the nature of cedar to crush more easily than cut, so when it came to routing the dadoes, a knife and slicing motions worked better than a chisel. A shop made router rounded out the tools needed for these joints. These are very small dadoes, 1/8 inch wide and only 1/16 inch deep. It turns out that they need exactly as many steps as any of their larger brothers.

As the box neared completion, regrets about wood choice began to loom. All of the boxes I’ve made recently have been made as much for having something to decorate with carvings as much as having a practical storage box. Carving wasn’t in the original plan, but why not? …. Because it’s stringy pine, that’s why not.

Then, along came Rob Porcaro (Heartwood blog) with “It’s always something.Read it!

A simple three leaf embellishment, a recent carving lesson from Mary May, originally meant for corner decorations, turned out to be just complicated enough to be satisfying and just simple enough for the pine. Taking shallower cuts to avoid unwanted splitting resulted in more facets than I like in the background, but adding yet more facets even things out.

All in all, she’s right. It turned out to be a satisfying project with a purpose.

Dimensions: 6 3/4 inches (L), 3 3/4 inches (W), 3 inches (H)
Finish: Shellac.

Card scraper box - carving on my new bench-on-bench

Card scraper box - carving on my new bench-on-bench

Dadoes are 1/8 inch wide and 1/16 inch deep to accept haunched dividers.

Dadoes are 1/8 inch wide and 1/16 inch deep to accept haunched dividers.

Like all good dadoes, they fit perfectly.

Like all good dadoes, they fit perfectly.

Card scraper box - ready to finish - waiting for shop to be warm enough - dividers are cedar

Card scraper box - ready to finish - waiting for shop to be warm enough - dividers are cedar

Card scraper box - body pieces are 1/4 inch thick Radiata pine - dividers are 1/8 inch thick cedar - bottom is 1/8 inch thick pine

Card scraper box - body pieces are 1/4 inch thick Radiata pine - dividers are 1/8 inch thick cedar - bottom is 1/8 inch thick pine

Card scraper box - end view shows lid pivot pin

Card scraper box - end view shows lid pivot pin

Card scraper box - finger notch was cut with a #6 gouge

Card scraper box - finger notch was cut with a #6 gouge

Card scraper box - room for more

Card scraper box - room for more

Card scraper box - bottom is only 1/8 inch thick, captured in grooves

Card scraper box - bottom is only 1/8 inch thick, captured in grooves



Fun with Small Dadoes

Sunday, March 9th, 2014

photo of dividers, end piece with dadoes and toolsA small box I’m making wants interior dividers. This is the first time I’ve tried making them, so it is a learning experience. The idea is 3 lengthwise dividers organized by two end pieces. The end pieces need dadoes. The scale of the project is such that the interior pieces are only 1/8 inch thick. I don’t have a 1/8 inch chisel and didn’t want to order one and wait. I do have an “Old Woman’s Tooth” router. So, off to the scrounge bin of Allen keys … some time with the hand cranked grinder … and some more time with the stones. The result is a 1/8″ router made in about a half hour.

photo of divider gripped in a good dadoThe material shown here is a sub-optimal choice, but it will do. It is cedar which is quite soft and crumbles in fear when a chisel comes near. Slicing is the key to success, and that little knife is kept razor sharp for marking, and now for slicing cedar.

Haunched dividers and stopped dadoes: a success, and fun learning how to make snug. (Yes, each fits snugly enough to support the end piece.)

Bob Builds Another BOB – the whole story

Friday, February 28th, 2014

The first Bench On Bench worked well and taught me what improvements it needed.My first Bench On Bench was delightful. It brought carving and joinery tasks to a very comfortable height. Two and a half years later, I still appreciate it, but know of ways to improve it. The most wanted improvement is better work holding capability for carving work. Pinching stuff between dogs in the front vise and the “floating planing stops” just wasn’t working well enough. Shims of various sizes were almost always needed. The front vise itself grew to be a bit floppy, the result of installing the vise screw nuts loosely in softwood sockets. As they floated and wiggled around, they also wallowed the sockets. The best part about the bench was the vise screws, 1/2 inch veneer press screws that were available several years ago from Tools for Working Wood, but are not to be found anywhere today. The handles on those screws can be pulled out and rotated, very convenient for moving them when “tight” leaves them sticking up in the way. Those are keepers! Lastly, the excellent Gramercy holdfasts were rarely useful due to the smaller size of most of my work pieces.

Along comes Chris Schwarz with the “Milkman’s Workbench.” Intended as a portable bench, it has a few features I like and thought would be useful. In the end, I borrowed a few ideas from that bench. The first was lamination from maple instead of fir. This is the last workbench I’m going to build; I might as well use hardwood. The next feature was the wagon vise. However, I’ll use another veneer press screw instead of the wooden screws. I can’t justify the tooling cost for making just one of those wooden screws, and for what it costs to buy one ready made, I can buy a couple of top of the line carving gouges. The last feature was square dogs and their recessed self-storage. I’ll keep the full width front vise and the excellent screws with adjustable handles. I find that vise better suited for the way I work.

Start with 3 boards 1x6 by 8 feet. Rip each into thirds. Then, crosscut into thirds. The color streaks are from spalting.One of the nearby home centers actually carries maple. It’s “mystery maple” since the specific variety isn’t identified. There was some minor spalting in two of the three best boards. My right thumbnail Janka gauge determined the stuff was OK. That’s the discoloration seen in a few spots. Even though the specific type is unknown, it was straight, free of knots and a joy to work.

Plowing 1/2 inch grooves used more than one tool, and a good bit of patience. The 044 plow plane was good at removing waste, but only after the groove sides were cut ahead. Maple is hard.Yes, it is a lot harder than most stuff I work with, and yes the Record 044 didn’t want to plow a 1/2 inch groove without a bit of help, and yes, cranking a 1 inch auger through it with an 8 inch brace was a bit of work. Yet, it is remarkably predictable and finish planing leaves a glass like surface.

All parts catalogs say this is a 1 inch force fit. Yeah right! Asymmetrical, winged, and tapered. Lots of fussing... The Auriou rasp is superb!The new veneer press screw doesn’t deserve nearly as much praise. It is advertised at most all woodworking supply sources and out of stock in almost all. Once acquired, the threaded socket that is advertised as a “1 inch press fit” is found to be an elliptical shape with ribs on the side and must have been the seventieth son of the seventieth son to be so asymmetrical. There’s enough play in the threads to never have to worry about them seizing, but maybe that’s why they hold a setting so well. Fitting something like this is when one learns to really appreciate how well Michel Auriou’s rasps perform  (the one on the right, not the rat tail).

Plan A - Traditional, with wagon vise on the right.About 3/4 of the way through gluing up the pairs of strips that accommodate dog holes, I remembered that some of my working methods really want clear space on the right end of the bench. Actually, I find myself doing several operations that overhang the right side. Oooops, that vise screw is going to be in the way. OK — Plan B! Just flip it over … and smooth finish the bottom side … and make some more dog recesses.

The rest is a matter of careful assembly, lots of gluing and clamping, lots of planing, a bit of drilling and fitting. By the way, the entire project was done with only hand tools. No electrons murdered. No sandpaper martyred. Very sharp plane blades, and well groomed card scrapers gave excellent results. There’s only one area not completely finished. I did not glue the end block for the vise. It is temporarily fixed with press fit Miller Dowels. It is the dry season now, about 25% humidity. In late summer humidity goes to 90%. I’ve left this area free of glue in case it needs to be disassembled and adjusted.

Update: I forgot to mention dimensions in the original post. The bench top measures 31.5 inches by 18.5 inches. The top surface is 8.5 inches above whatever it sits on. It weighs 32 pounds.

The work holding capability is better than I aimed for, and the fit and finish is a big step above the previous version. All of the methods I practice can now be done easier and more reliably with this bench. There’s a slideshow below this last group of photos. It has a few more photos with explanations. As always, click on any photo to see a larger version.

Work holding - a typical relief carving Work holding - a larger and scarier relief carving - space for much larger... Work holding - This one is hard to hold well, but this works, a good test for moderate sized 'in the round' carvings. Work holding - typical joinery cutting - 22 inches between vise screws gives lots of capability. Work holding - on the bench surface - plenty of capability for my scale of box making Work holding - Needed a slight overhang. Easy. Drop the left end of the front chop and use the wagon vise. Easiest grooving ever.

The first Bench On Bench worked well and taught me what improvements it needed.

The first Bench On Bench worked well and taught me what improvements it needed.

Start with 3 boards 1x6 by 8 feet. Rip each into thirds. Then, crosscut into thirds. The color streaks are from spalting.

Start with 3 boards 1x6 by 8 feet. Rip each into thirds. Then, crosscut into thirds. The color streaks are from spalting.

Plowing 1/2 inch grooves used more than one tool, and a good bit of patience. The 044 plow plane was good at removing waste, but only after the groove sides were cut ahead. Maple is hard.

Plowing 1/2 inch grooves used more than one tool, and a good bit of patience. The 044 plow plane was good at removing waste, but only after the groove sides were cut ahead. Maple is hard.

Checking the layout. Yep, that'll work.

Checking the layout. Yep, that'll work.

Turning a 1 inch auger, in maple, with an 8 inch brace is near insanity. My 10, 12, and 14 inch braces are still on the 'buy someday' list.

Turning a 1 inch auger, in maple, with an 8 inch brace is near insanity. My 10, 12, and 14 inch braces are still on the 'buy someday' list.

All parts catalogs say this is a 1 inch force fit. Yeah right! Asymmetrical, winged, and tapered. Lots of fussing... The Auriou rasp is superb!

All parts catalogs say this is a 1 inch force fit. Yeah right! Asymmetrical, winged, and tapered. Lots of fussing... The Auriou rasp is superb!

Vise dry fit #1

Vise dry fit #1

Ahhhh. Vise dry fit #2. Now, it looks like a vice. Those walnut pins are the garter, temporary for now.

Ahhhh. Vise dry fit #2. Now, it looks like a vice. Those walnut pins are the garter, temporary for now.

All the parts ready for assembly ... in 'Plan A' configuration.

All the parts ready for assembly ... in 'Plan A' configuration.

Do this 6 times over the next few days, or go buy 50 more clamps. :)

Do this 6 times over the next few days, or go buy 50 more clamps. :)

Nuts for the front vise screws are mortised in very snugly, and then epoxied to prevent any wiggle.

Nuts for the front vise screws are mortised in very snugly, and then epoxied to prevent any wiggle.

Plan A - Traditional, with wagon vise on the right.

Plan A - Traditional, with wagon vise on the right.

Plan B - Flip it over. Wagon vise on the left and better use of the right end of the bench.

Plan B - Flip it over. Wagon vise on the left and better use of the right end of the bench.

Scrub baby, scrub!  I have an alternate curved iron for the #5. Maple is hard, but predictable, and finishes very nicely.

Scrub baby, scrub! I have an alternate curved iron for the #5. Maple is hard, but predictable, and finishes very nicely.

Miller dowels through the bridle joints make the vise strong enough. Nothing here was glued for now. It's the dry season and may need disassembly when the humid season arrives.

Miller dowels through the bridle joints make the vise strong enough. Nothing here was glued for now. It's the dry season and may need disassembly when the humid season arrives.

Work holding - a typical relief carving

Work holding - a typical relief carving

Work holding - a larger and scarier relief carving - space for much larger...

Work holding - a larger and scarier relief carving - space for much larger...

Work holding - This one is hard to hold well, but this works, a good test for moderate sized 'in the round' carvings.

Work holding - This one is hard to hold well, but this works, a good test for moderate sized 'in the round' carvings.

Work holding - typical joinery cutting - 22 inches between vise screws gives lots of capability.

Work holding - typical joinery cutting - 22 inches between vise screws gives lots of capability.

Work holding - on the bench surface - plenty of capability for my scale of box making

Work holding - on the bench surface - plenty of capability for my scale of box making

Work holding - Needed a slight overhang. Easy. Drop the left end of the front chop and use the wagon vise. Easiest grooving ever.

Work holding - Needed a slight overhang. Easy. Drop the left end of the front chop and use the wagon vise. Easiest grooving ever.



Bob Builds Another BOB

Monday, February 17th, 2014

just one photo for now…
