Treadle Lathe – Bearing Blocks

September 9, 2012 by Bob Easton 3 Comments

Other people who have added modern bearings to their wooden treadle lathes report the bearings eventually moving around and becoming wobbly.

photo of bearing blocks and some tools

The solution is housing the bearing in something harder than the typical softwood we use for the lathe frames. Let’s see now… oak, ash, … ah, there’s some walnut left from a gun stock project. There’s enough walnut for the bearing blocks and for a few other small parts. Perfect.

There are a total of 4 bearings, two 1/2″ for the flywheel and two 5/8″ for the headstock. One of the 5/8″ bearings is a thrust bearing that will absorb the headstock’s lateral movement. They have outside diameters of 1 and 1/8″ and 1 and 3/8″. Forstner bits in a hand brace do the job. I drilled several holes through a block that’s a bit more than twice as thick as the bearings. Then, I sliced the block into the correct thickness. It’s a simple resawing task, but the work pieces were too small to handle well for manual resawing. So, I relented to using the band saw. After that, saw to size with a Japanese pull saw. Yes, I’m leaving them square. It’s easier than making them round.

By the way, I can’t say enough good things about my Czeck Edge marking knife. It’s really hard to mark dark woods for sawing. Pencil lines disappear. Pen lines are too fat. The marking knife makes perfect lines that are both precise and very visible.

P.S. I’ll be remaking the block for the thrust bearing. I’ve decided to double up on that one by placing the thrust bearing and a regular bearing sandwiched together. It’s a simple matter of more boring boring.

Filed Under: Shopmade, treadle lathe

Treadle Lathe – Mount the Wheel

September 7, 2012 by Bob Easton 3 Comments

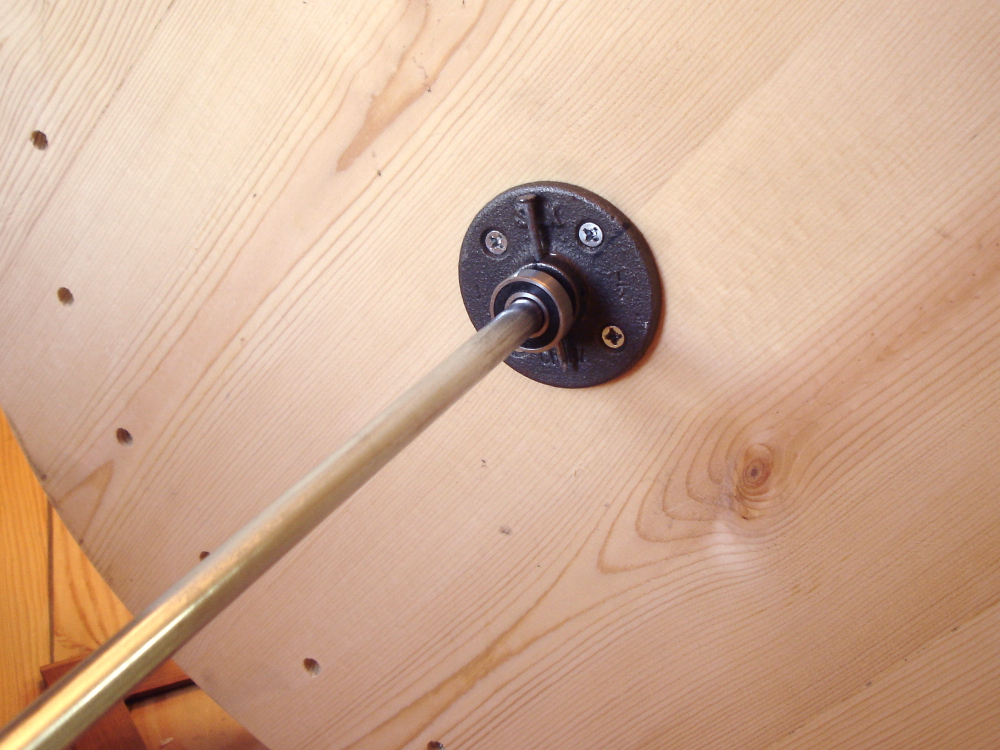

photo of flange, axle and wheel

One of the hard parts of preparing the flywheel was done a long time ago, before cutting it round. The wheel rotates on a 1/2 inch axle. I drilled the center hole and then used that hole as the pivot point for cutting the perimeter on the band saw. Nice! Guaranteed center for the axle.

Here, we see the axle mounted. I used the ever popular plumbing flange on both sides of the wheel. The purpose of this flange is to connect the wheel mass to the axle. That is done with a simple 9/64″ hole drilled through the axle and a common “8 penny” nail through a pair of holes already in the flange. Simple. Snug. Done! (Oh well, almost. The axle will be cut to length later.)

Yes, there’s a matching flange on the other side of the wheel. No pin through it; all we need is one. The real purpose of that flange is to provide a bearing surface for the washers that will keep the wheel centered between the uprights. You’ll see those later.

Filed Under: Shopmade, treadle lathe

Treadle Lathe – Resume Building

September 6, 2012 by Bob Easton 11 Comments

drawing of latheBuilding a treadle lathe started a long time ago, when the shop was too cold for epoxy to cure on a boat I was building. A lot of water has passed under our boats since then. Other activities, swimming, language learning, travel, and various forms of woodcarving have also happened. So, why back to the lathe now? Simple, some of the woodcarving I want to do is on various turned objects.

Quick recap: Plans are abundant. Making choices depends on intended use and can lead to analysis paralysis. My intended use does not include dragging the thing around to festivals, to shows, or any form of re-enactment. Out with the period costumes, and actually out with some of the other period authenticity.

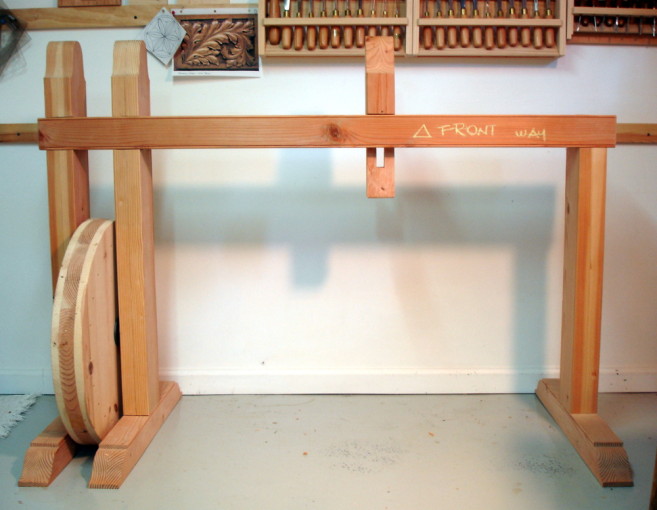

photo of dry fitted major parts

The lathe is intended for practical use and I’ll certainly be using modern parts such as ball bearings, chucks and live centers.

My choice of structure most closely resembles Stephen Shepherd’s 1805 “Moses T” lathe, but without the bench behind the ways. Mine is also heavier in certain areas, mainly the uprights and feet.

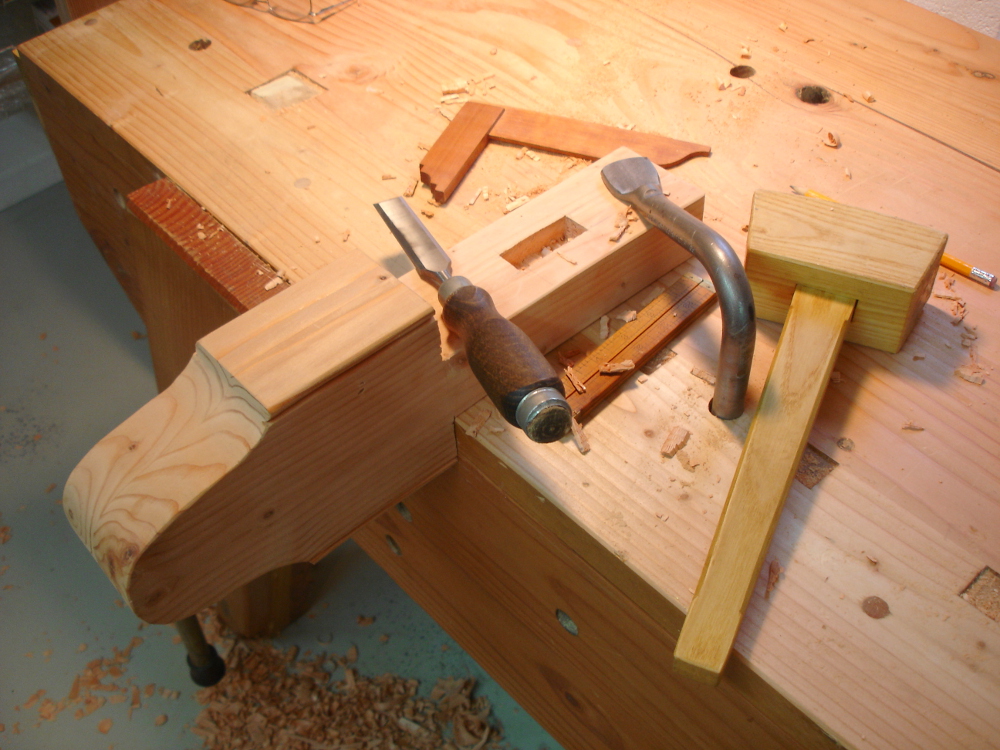

photo of tail stock being mortised

The last we saw of the build had the bigger parts mostly complete, the uprights, feet, wheel and rough tail stock. All of it has been set aside in the shop and has shown no signs of checking, splitting, warping etc. Not bad for construction grade lumber. The photo of assembled parts is showing only a dry fit. Nothing is fastened to anything else. … and what looks like a piece of lumber much longer than the lathe is really a french cleat attached to the wall behind the lathe.

Recent work includes getting the tail stock to fit between the ways. That was basic tenon cutting. After that, I hacked out a through mortise that will later house a wedge.

Next up: A bevy of smaller parts for the treadle, or getting that wheel mounted between the uprights? hmmmmmm…
